Tổng quan |

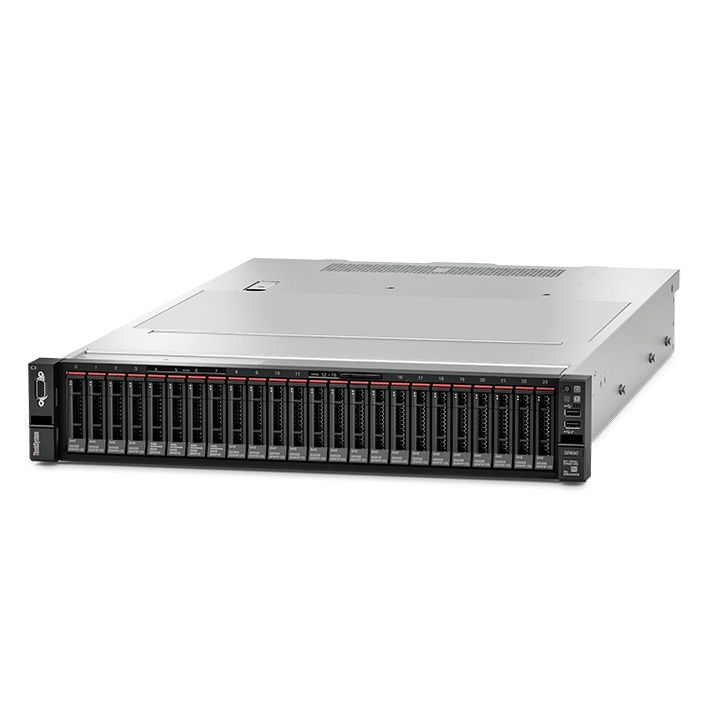

Tên sản phẩm | ThinkSystem SR650 Rack 2U | Model | 7X06A03FSG | Xuất xứ | China |
|
Hệ điều hành |
Hỗ trợ hệ điều hành | Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.4/7.3/6.9.SUSE Linux Enterprise Server 12 SP3/12 SP2/11 SP4. VMware ESXi 6.5U1/6.5/6.0U3 |
|
Bộ vi xử lý |
Tên bộ vi xử lý | Intel Xeon Gold 5115 10Core 85W 2.4GHz/13.75MB/DDR4-2666 | Số lõi | 10 | Tốc độ xung nhịp | 2.4 GHz | Bộ nhớ đệm | 13.75MB | Số bộ xử lý | 1/2 | Hỗ trợ tối đa | Up to two 205W Intel Xeon Scalable family processors, Bronze, Silver, Gold, orPlatinum. Up to 28 cores at 2.5GHz, up to 3.6GHz with 4 cores. Two processors areconnected with two UPI (Ultra Path Interconnect) links up to 10.4GT/s Up to 2400 MHz | Chipset | Intel C624 |
|
Bộ nhớ chính (RAM) |
Cài đặt theo máy | 16GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM | Công nghệ | ECC, memory mirroring, and memory sparing | Khe cắm RAM | Up to 24 DIMM sockets. Each processor supports up to 12 DIMM sockets with6 channels. DDR4-2666. RDIMMs, LRDIMMs, 3DS RDIMMs are supported, butmemory types cannot be intermixed | Hỗ trợ tối đa | Up to 768GB with 24 x 32 GB RDIMMs and two processors. Or up to 1.5TB with24 x 64 GB LRDIMMs and two processors. Or up to 3TB with 24 x 128 GB 3DSLRDIMMs and two -M suffix processors. -M suffix processor supports 1.5TBmemory per socket, non -M suffix processor supports 768GB memory per socket |
|
Ổ đĩa cứng (HDD) |
Dung lượng | Optional | Khay ổ cứng | HotPlug 2.5" SAS/SATA Supports 8 front 3.5" SATA/SAS HS bays, or 12 front 3.5" SATA/SAS HS bays withmaximum 4 AnyBay, or 8 front 2.5" SATA/SAS HS bays with maximum 4 AnyBay,or 16 front 2.5" SATA/SAS HS bays with maximum 8 AnyBay, or 24 front 2.5" SATA/SAS HS bays with maximum 4 AnyBay. Optional 2 rear 3.5" HS bays are supported on 12 x 3.5" model, takes place in risercard 1 location. Optional one or two internal M.2 SSD for boot, dual M.2 SSD supports mirroring Up to 24 bays SFF HS SAS/SATA | Hỗ trợ tối đa | Max Storage Internal 360TB | Raid | RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50 | Hỗ trợ Raid | - |
|
Ổ đĩa quang (ODD) |
|
Đồ họa |
Bộ xử lý đồ họa | Matrox G200eR2 with 16 MB | Dung lượng đồ họa | Shared |
|
Khe cắm mở rộng |
Khe cắm mở rộng | Supports one of the following for riser card 1: Option 1:PCIe 3.0 x8/x8/x8 (slot 1-3). Full height, half length. Option 2:PCIe 3.0 x16/x8 (slot 1 and 3). Full height, full length for x16.Full height, half length for x8 Option 3:PCIe 3.0 x8/x8/x8 ML2 (slot 1-3). Full height, half length Option 4:PCIe 3.0 x8/x16 ML2 (slot 1 and 3). Full height, half length Option 5:Two rear 3.5" disk bays, 12 x 3.5" models only - Slot 4 (onboard) PCIe 3.0 x8, low profile
- Slot 5 (riser card 2) PCIe 3.0 x16, full height, full length, requires 2nd CPU
- Slot 6 (riser card 2) PCIe 3.0 x16, full height, half length, requires 2nd CPU
|
|
Cổng giao tiếp |
Cổng giao tiếp | - Front: One XClarity Controller USB connector, one USB 3.0, one optional VGA
- Rear: One VGA, two USB 3.0, oneXClarity Controller network connector. OptionalCOM port
|
|
Kết nối mạng |
Network (RJ-45) | 4x 1/10Gb Ethernet ports |
|
Quản lý hệ thống (Systems management) |
Systems management | XClarity Controller Standard,optional upgrades to Advanced orEnterpriseareavailable. Energy Manager. XClarity Administrator. Lenovo Capacity Planner.Provisioning Manager. Essentials. Light Path Diagnostics |
|
Thiết bị nhập liệu / bàn phím |
|
Nguồn |
Nguồn | 750W(230V/115V) Platinum Hot-Swap Power Supply |
|
Kích thước / trọng lượng |
Kích thước | H 87 mm x W 445 mm x D 720 mm | Trọng lượng | Maximum configuration: 70.54 lb (32 kg) | Kiểu dáng | Rack 2U |
|
